LEDSON Helix Work Light with Strobe

Ledson Helix Reversing Light / Work Light with Strobe Flasher

✓ Helix reversing light with flashing light
✓ A multifunctional lamp that makes it all easier!
✓ E-marked ECE R23 and R65

The Ledson Helix is an E-marked reversing light that, in addition to lighting up well behind you, also has an approved flashing light. With two functions in one product, you save space on the vehicle and simplify your installation!

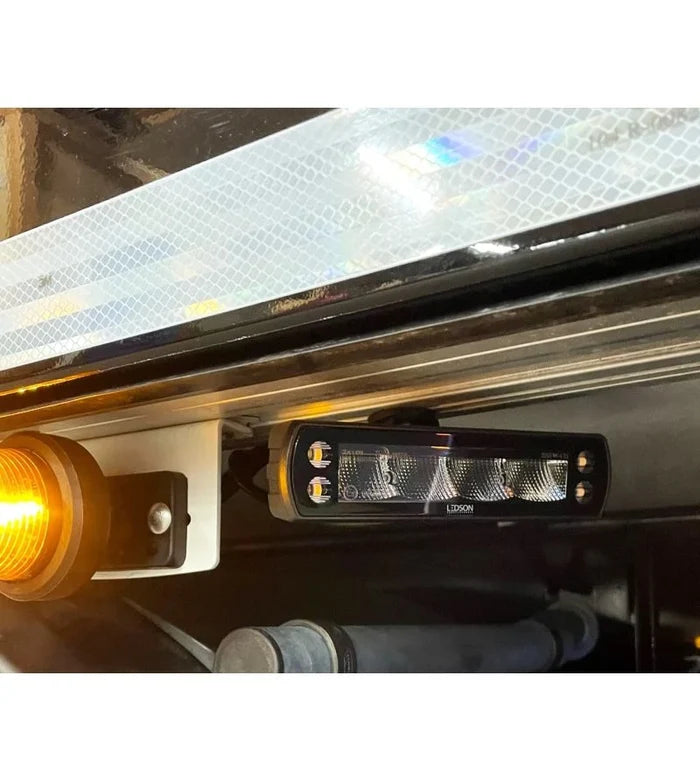

Helix can be mounted standing, hanging or with flush mounting.

Features:
E-marked reversing light equipped with approved strobe light
ECE R23, R65, R10, CISPR25 class 3
Including bracket for standing / pendant & flush mounting
River light image (wide beam)
Lumens: 3200 (theoretical), 2700 (real)
Side reflecting optical system
Electronic thermal management
Cool white light (6000K)

Technical data:
4 x 8W LED (reversing light) + 4 x 3W LED (strobe light)
Load 1.9A at 12V and 1A at 24V
IP69K (water/dust proof)
Voltage 9-36V
Mounted 4-pin DT connector on the cable to prevent moisture ingress
Including DT female

Unit of measurement:
Width: 164mm
Height: 41mm excluding bracket
Depth: 61mm
Cable length: 30cm

Cable installation instructions (detailed in the description) installation instructions included)

Red: Reversing light (+)
Black: Reversing light (- ground)
Yellow: Warning/flashing light (+)
Green: Sync (+) Connection when using multiple lamps simultaneously

NOTE: The DT connector must not be cut as this means an increased risk of moisture damage and the warranty will then be void. DT connector (male) with hinge included with the product.

More information
Feature Value
Color Xenon white
Voltage 9-36 V
Ignition time, cold to full power Direct
Manufacturer Ledson
Area of application Outdoor use
Number of diodes 8 pieces
Warranty 24 months
Light source LEDs
Supplied part
E-marking ECE R23, ECE R65
Be equipped with Reversing light, flashing light
Number of contacts 1 x DT connector
Type of light image Flood
