• 2.5kg 4043 Aluminium TIG Wire
1 1

-

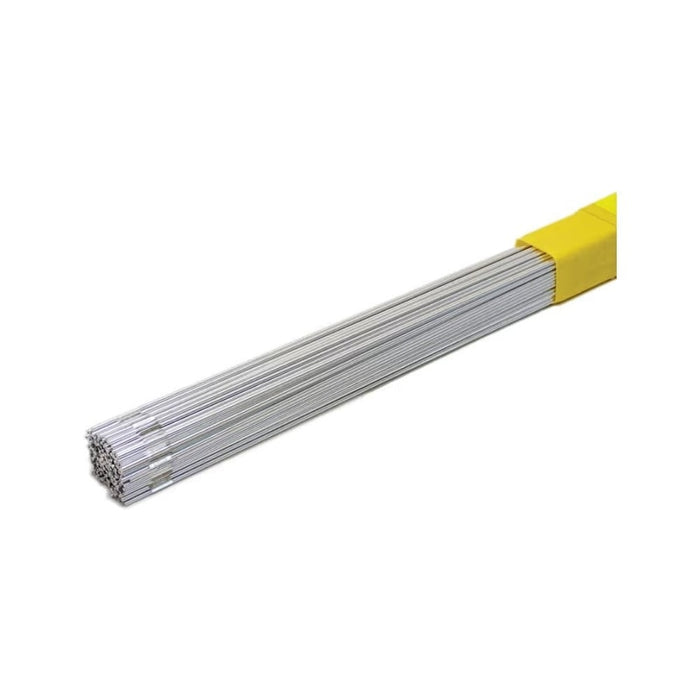

2.5kg 4043 Aluminium TIG Wire

2.5kg 4043 Aluminium TIG Wire

$24.83 USD
$34.02 USD $24.83 USD
Sale Sold out
Shipping calculated at checkout.
Tig Wire
Working with thicker metals may require a mix of Helium and Argon, due to it being a hotter shielding gas that will give better penetration. Furthermore, use 4043 Aluminium TIG Welding Wire when repairing or making housings and crankcases. Manufacturing cylinder heads and blocks, creating ornamental aluminium pieces are also good uses for these filler rods. Plus fabrication of boats, trucks and bus bodies, along with making vats, tanks or containers.

Provides excellent corrosion resistance for applications where this is a key factor. Packaged in plastic storage containers which give great protection from dirt and debris, therefore always keep them in their actual box.


An aluminium alloy with 5% silicon, with excellent flow characteristics and penetration. Suitable for welding duralumin cast (LM25) and wrought alloys 6063 (H9), 6061 (H20) and 6082 (H30). Weld will discolour if anodised. Can be used TIG or in Oxy Acetylene. If used in Oxy Acetylene, use Aluminium brazing and welding flux.

WELDING APPLICATIONS

Suitable for welding duralumin, cast and wrought alloys 6063 (H9), 6061 (H20) and 6082(H30), as well as other ‘4 series’ aluminium’s. As a result, the weld will discolour if anodised. Pre-heating up to 120ºC may be necessary, subject to material size and thickness. Another key point is wire brushing between passes is recommended, to remove build up of surface oxides.

Firstly the parent material must be fully cleaned and degreased prior to welding. Additionally clean joints with a stainless steel brush.

FEATURES AND BENEFITS

Most popular grade of Aluminium TIG Welding Rods.

Excellent Corrosion Resistance.

5% Silicon creates good fluidity in the weld puddle.

Use an Argon / Helium mix when welding with thicker materials.

Standards:

AWS: A5.10 92 ER4043

EN 18273-S 2004 AL4043
